Description:
This machine is high speed flatbed digital cutter specially equips the vibrating knife, creasing wheel, drag knife, v cut knife and pen, it can cut many kind of materials, such as PP sheets, corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet and also the ads and display industry’s materials PVC and so on. It is more flexible and broaden the cutting application. It can be used to cutting, sampling, and small production for the packing, printing, ads and display industries.
Main features:
- New steel frame design, more stable of machinery
- TWO independent module design, broaden the application
- Exchangeable tools, better expansion
- New honeycomb bed and vacuum area design, stronger suction
- Max cutting thickness up to 60mm
Machine More Details:
1. Steel structure:
2. Honey board bed (Honeycomb Aluminum bed)
(whole design, won’t bend)
3. Motor and Driver
Mitsubishi brand servo motor and driver
4. Transfer port ( Ethernet port, USB port, Udisk)
5. Tool head
| Standard Tool | Optional tool |

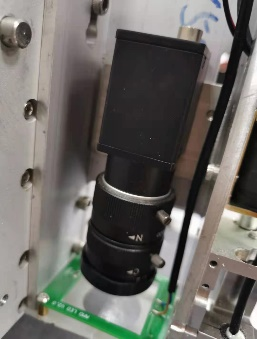

| Oscillation knife | Creasing Wheel | Plotting Pen | Laser light | Drag knife | Camera |
 |  |  |  |  |  |
Control system
Touch screen
Language(With your required to install): English, Spanish, French, German, Polish, Portuguese, Russian, Korean, Vietnamese, Indonesian, Italian, Turkish, Arabic, Finnish, etc.
File format: DXF,PLT,AI, PDF, ETC.
- Fix the Paper
7.5KW vacuum pump with 8 zones
- Cutting Speed (according to different cutting materials)
Maximum cutting speed:1500mm/s
Maximum Cutting thickness:60mm
- Type of materials:
foam, EVA, PVC,PP Sheets, polypropylene corrugated sheet, corrugated cardboard up to 60 mm, cartons, laminates,4 printing blankets, coating plates,4 preprinted vinyl films, reflective sheeting, textile and technical fabrics,4 soft, elastic and other ,etc
